I can't imagine that is normal. I would think there needs to be a way to adjust how level the deck sits.

Also, are you 10000% sure the concrete is level?



Concrete is level.

I just leveled the deck using the 2" block method, all 3 points match. Tires are at correct PSI. The deck still sits lower on the chute side.

Anybody have an E140 that can chime in? I want to confirm if this is normal or not before I use it.

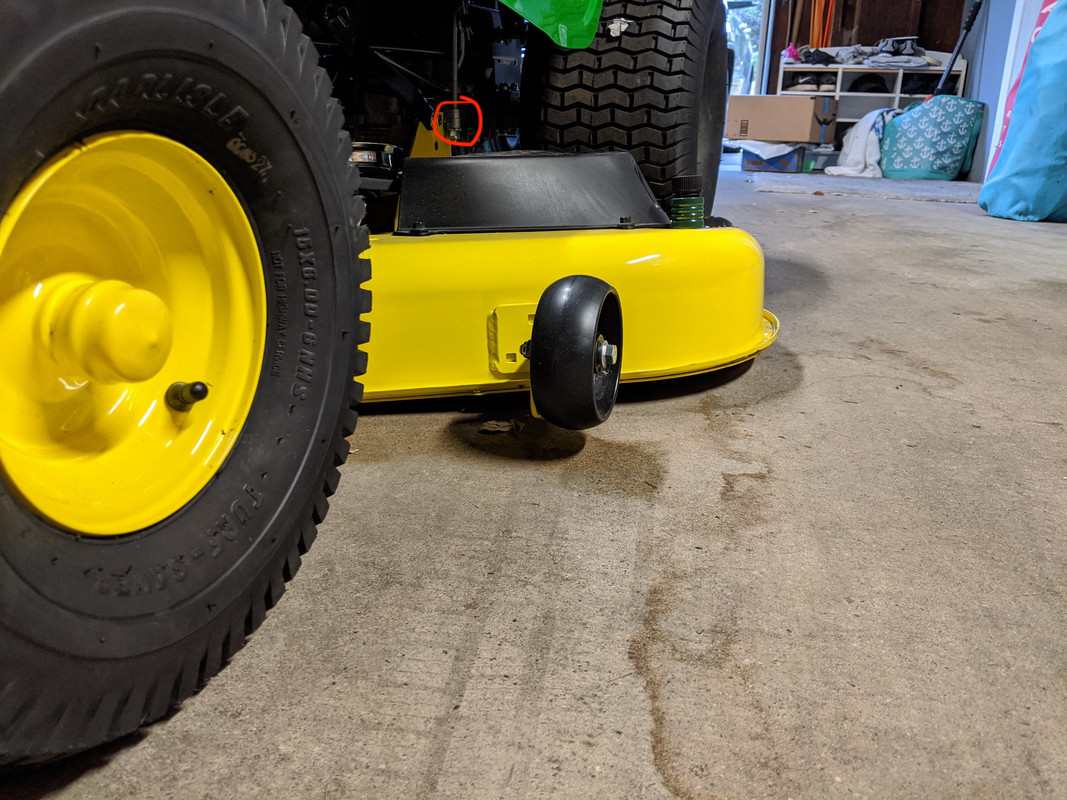

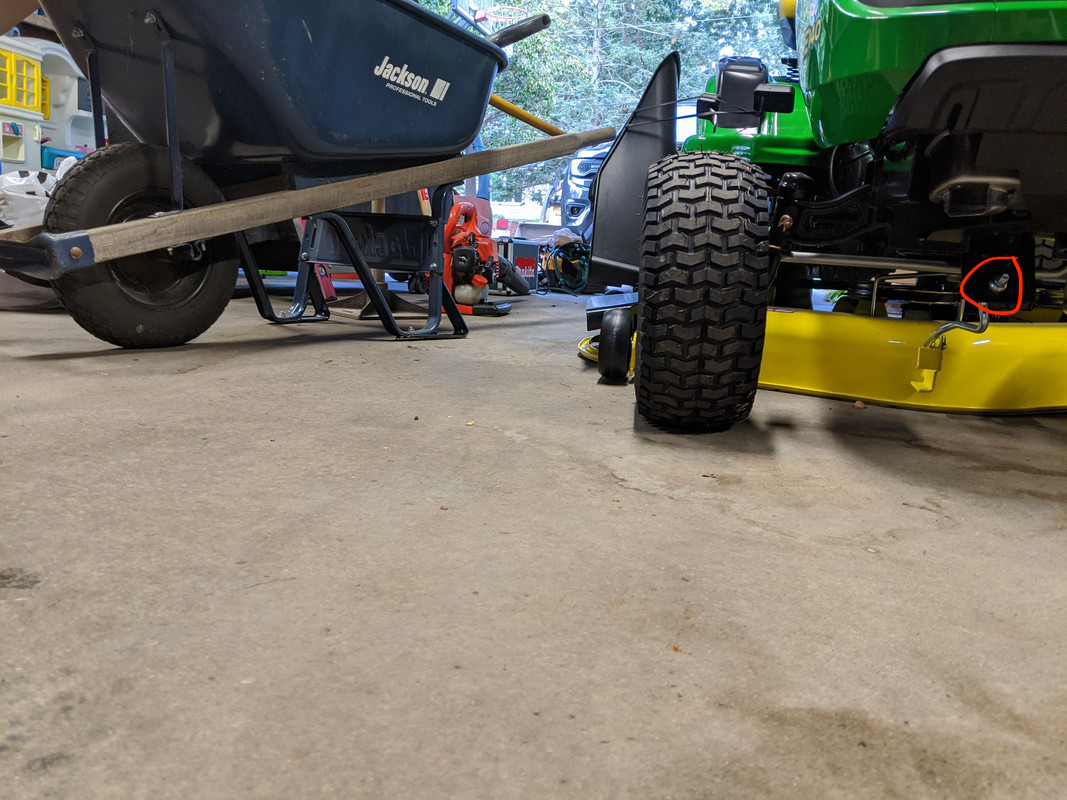

You need to level the deck with the hanger nuts you can see in your pictures. I highlighted them for you. The back of the deck has a nut on each side. The manual that came with it will tell you how to level it. It should have been level already but I noticed mine wasn't level when I bought mine from the dealer too.



Thanks kruse. Not sure if you saw my post, I already leveled the deck and it's still sitting like that.

I haven't been able to find another 48" model to check if it's the same.



Thanks kruse. Not sure if you saw my post, I already leveled the deck and it's still sitting like that.

I haven't been able to find another 48" model to check if it's the same.

I would level the blades and not the deck and see how it sits then. The block method works for the most part but different blades could change that height.



Yeah I'm gonna do that, I need to get a depth gauge tho. I did a "feel" test with my hand and it felt like the two outside blades were about the same height.

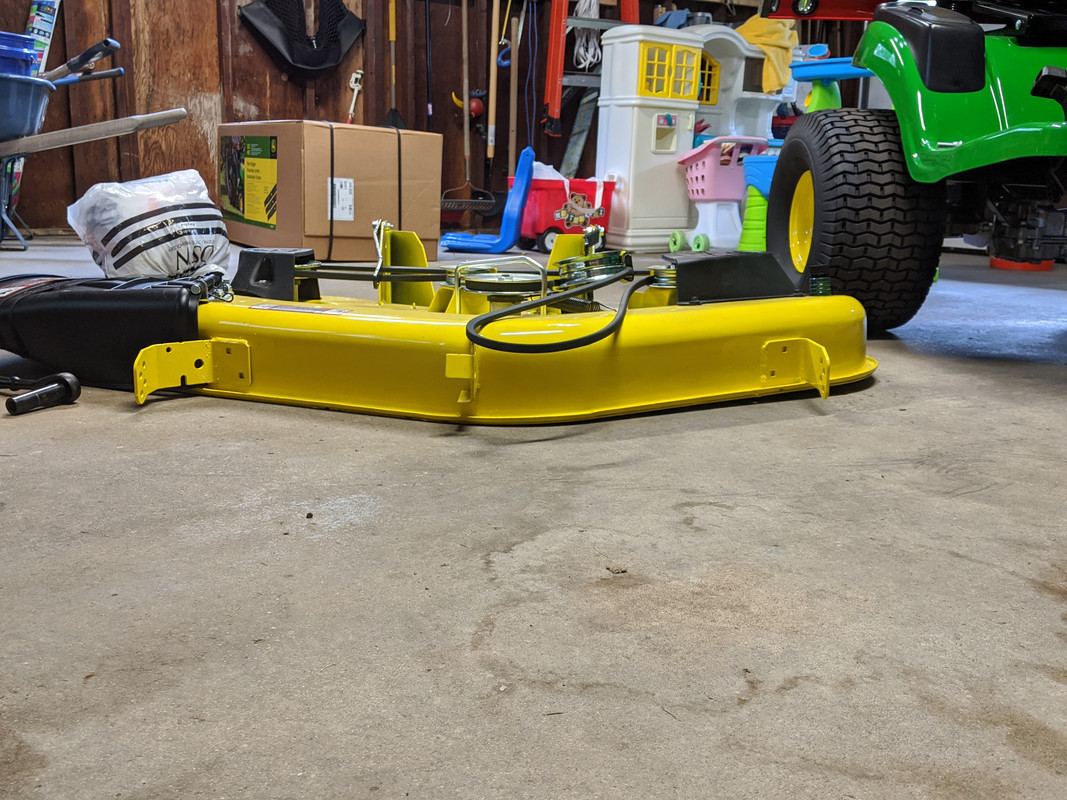

I took the deck off today, I assume it should not be sitting like this. No one with a 48" JD can comment?



I've never checked to see if the bottom of my deck was flat and I have a D130 42". Check with your local deere dealership and they will take care of it if it's warranty.

Does it not cut well?



I took the deck off today, I assume it should not be sitting like this. No one with a 48" JD can comment?

I too was thinking that the deck just needed to be adjusted, but that doesn't look right. I would definitely be checking with John Deere on that one. If the deck is bent, you would never get a good looking cut out of it.
