[Green]

@Green not sure, all I know is the straps from the 6200 fit perfectly on the 20v model.

Thanks. These appear to be part 6-8182. The one I linked was 6-8181. Wonder what the difference is.



[Green]

The Chapin 6-8175 Shut-off Assembly w/Gauge would tell you what your operating pressure is - it looks like it would be a direct swap.

They sell just the gauge too, but the whole assembly is only ~$1 more.

I assume the gauge comes off the trigger if you buy them together?



[Green]

Add me to the list...

I saw some black pieces in my tube today. How do you get them out?



[jha4aamu]

for those of you who have added the dfw wand to your chapin sprayer, how are you keeping the wand/sprayer handle attached to the tank when you are storing it. The wand that came w/ the sprayer would fit snug in the groove on the lid but the dfw style wand is smaller in diameter and slides right out.



[mha2345]

https://www.walmart.com/ip/Chapin-International-Rechargeable-4-Gallon-20v-Battery-Sprayer/368665606Can someone confirm this is the right sprayer?



[Green]

Ok, now my pressure has dropped too low even with a fully charged battery and 1.5 gallons in it. Even flipping it upside down doesn't always resolve it.



[g-man]

@Green did you check the filters? Mainly the one at the wand?



[g-man]

@mha2345 if you want a 20v Chapin, yes that the right one.



[Green]

@Green did you check the filters? Mainly the one at the wand?

Not since that started. Thanks for the idea.



[Green]

@Green did you check the filters? Mainly the one at the wand?

The wand one was fairly clogged...bunch of black stuff and a piece of grass. Other one was fine. Hopefully that'll help.



[g-man]

A few small pieces of stuff in that filter makes a huge difference.



[Green]

A few small pieces of stuff in that filter makes a huge difference.

Yes. Now that it's out, it seems to work again. Thanks.



[StarRaider]

I bought one of these sprayers in 2016 around Memorial Day IIRC. After a spray session that summer or the next... I forgot to remove the battery for a few days, maybe a week or 10 days. Battery won't take a charge. I called Chapin and they told me never leave the battery in the sprayer, always remove it and keep it in the charger. They also sent me a replacement battery.

Fast forward to today, I read @Ware''s battery revival on page 2... I still have that dead battery in my "to be disposed of" box. I pulled it out, hooked it up to one of my Ryobi 18V batteries and presto it came back to life! :banana: :dancenana: :banana:

I have a couple of other lithium batteries in that box that I am trying the Lazarus trick on.



[Green]

Wow. Never leave the battery attached?



[StarRaider]

You can leave the battery in the sprayer while you are using, filling, etc. Maybe even a day or so. The Chapin lady told me even though the sprayer is "off" there is still a power drain (likely from the pressure sensors but I am speculating here). I try and remove the battery as soon as I am done, but there are still times that I forget and leave the battery in the sprayer for several hours after I am done. I usually have a panic attack when I realize I left it in and pray for no blinking red light when I put the batt in the charger.

The Chapin customer service is first rate.



[Lawnguyland]

I used my sprayer earlier this month and as soon as I was done with my yard, it quit. I threw it on the charger and it started to take a charge but when I went back to it later it had the blinking red light of death.

I store the battery in my office drawer and only sprayed 6 full refills over a 2 or 3 weekends on a full charge but I think that was just long enough to permanently damage it. I've tried jumping it with a good battery (+ to + and - to -) but it's stuck at 15V. Not sure what the minimum the charger will accept but I didn't think this was that low. I wonder if something else went bad inside of the battery.

The battery was 2 years old and Chapin wouldn't get back to me about a warranty replacement so I bought a bootleg off eBay for $15. The bootleg works great so far and is a 2.5Ah instead of the 1.5Ah B&D. Supposedly has a 5 year warranty too. Time will tell how it holds up and if the eBay seller will still be around in 5 years if I need to try to cash in on the warranty. I can't complain for the price. Has anyone else tried these eBay batteries? How do they hold up?

https://rover.ebay.com/rover/0/0/0?mpre=https%3A%2F%2Fwww.ebay.com%2Fulk%2Fitm%2F153549865031

Since Chapin never responded I contacted Black and Decker and they sent me a new battery under warranty. I was originally thinking of alternating between the two batteries but I think I'm going to keep the new B&D battery in my drawer until the eBay one dies. I don't have any other B&D tools.



[985arrowhead]

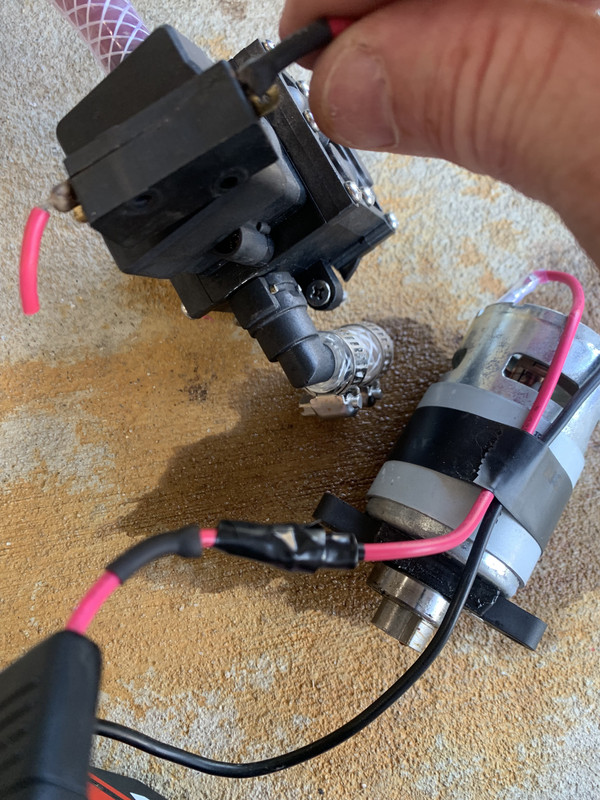

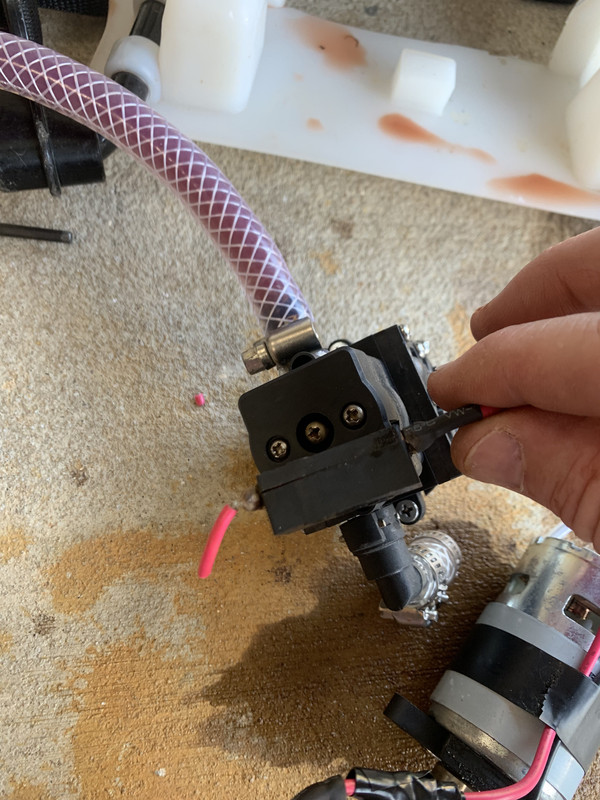

Had some trouble with my sprayer this morning. Apparently I had some leak in the "control area". The black box underneath that houses the pump etc.

Here is what I found.

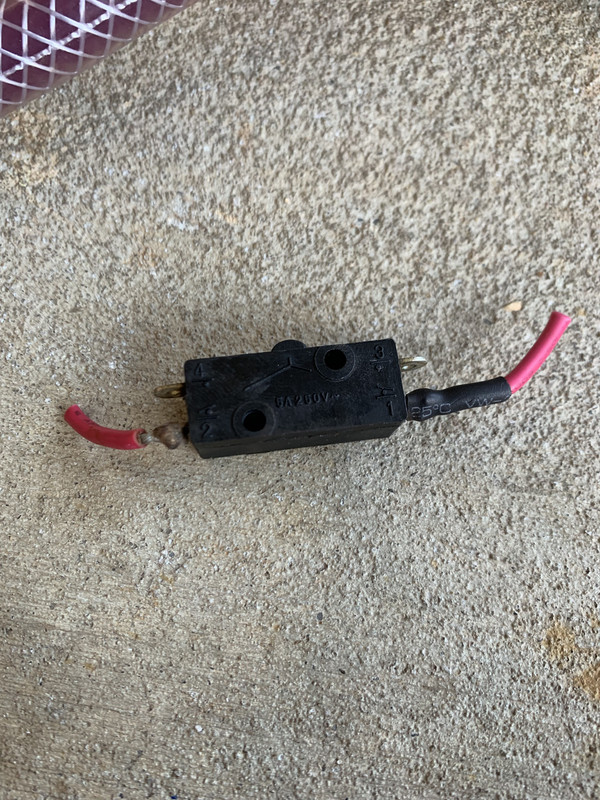

This piece, anyone know what it is and is it needed? Had some corrosion but i cut it out and spliced the wires back together and it works fine. M





Pump just doesn't cycle or shut off like it used to so I am thinking some type of capacitor or fuse based on the markings.

Anyway, thanks for any input!



[BobRoss]

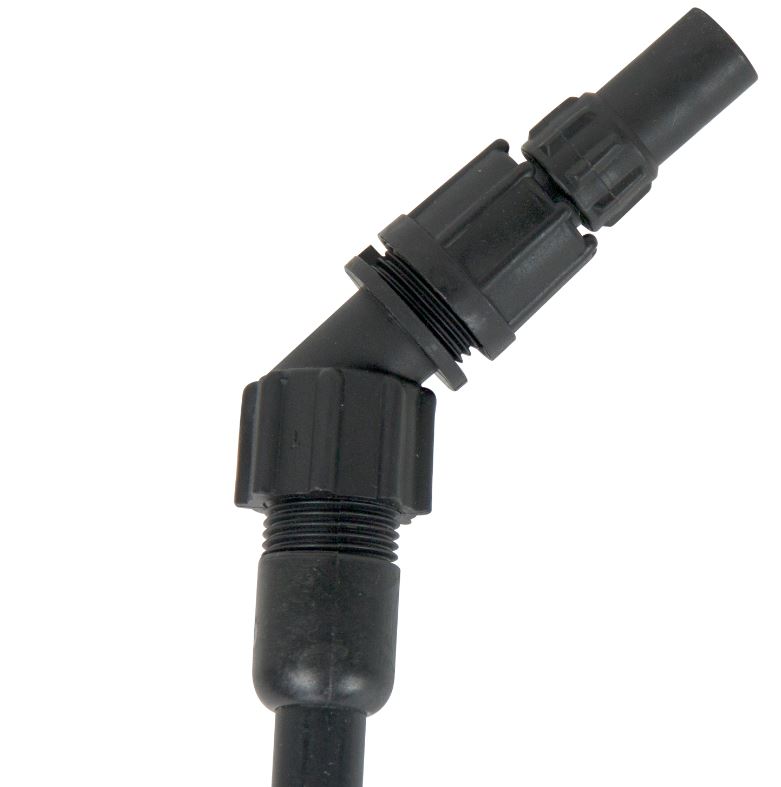

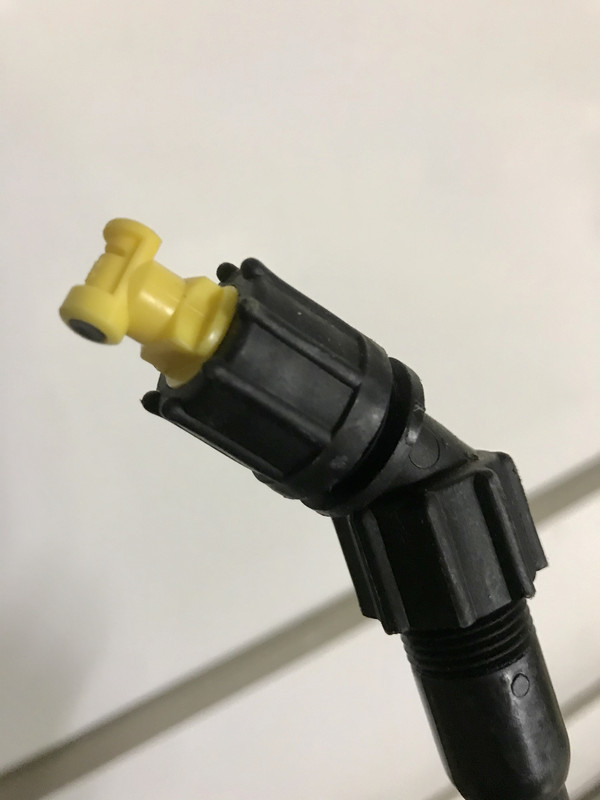

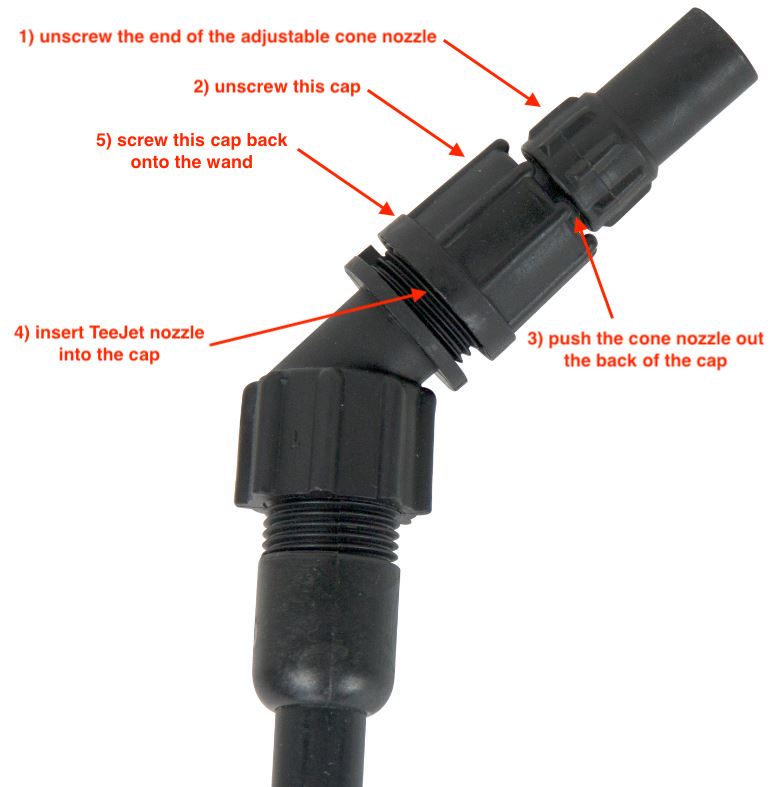

How are you adding the TeeJet to these tips on the 20V? I haven't seen a TeeJet in person, but I am not picturing how it would work.



[Ware]

How are you adding the TeeJet to these tips on the 20V? I haven't seen a TeeJet in person, but I am not picturing how it would work.

Note there will be a rubber washer behind the nozzle that needs to be re-installed.



[Ware]
